3D Secure Setup

This guide provides an overview of the setup for 3D Secure for Visa and Mastercard, as well as the onboarding process with Marqeta and payment networks. It also outlines the integration points you must plan for during 3D Secure authentication and payment transactions. Use this guide to plan the actions and integrations required to enable 3D Secure features on the Marqeta platform.

Setting up 3D Secure

The following sections describe how to set up 3D Secure on the Marqeta platform.

Setting up 3D Secure for your use case

For some use cases, such as those for Buy Now, Pay Later (BNPL) applications, configuring Challenge All can result in challenging cards that are not enrolled for one-time passcode (OTP) or biometrics decisioning. To prevent unnecessary declines in such cases, implement Automated Decisioning with Issuer Transaction Risk Analysis (TRA) or Delegated Decisioning at your gateway. For detailed information on how to set up the best 3D Secure configuration for your use case, contact your Marqeta representative.

Available combinations

The following table shows the available combinations for 3D Secure risk policy and authentication, as well as the amount of effort required.

Options	3D Secure Risk Policy / Challenge All (Default – No policy chosen)	3D Secure Risk Policy / Delegated Decisioning	Automated Decisioning	Authentication Mechanism / Default OTP	Authentication Mechanism / Advanced Authentication	Customer Effort
Option 1	✔	∅	∅	✔	∅	○ ○ ○
Option 2	∅	✔	∅	✔	∅	● ● ○
Option 3	∅	✔	∅	∅	✔	● ● ●
Option 4	∅	∅	✔	✔	∅	○ ○ ○
Option 5	∅	∅	✔	∅	✔	● ○ ○
Option 6	✔	∅	∅	∅	✔	● ○ ○

Integration flow

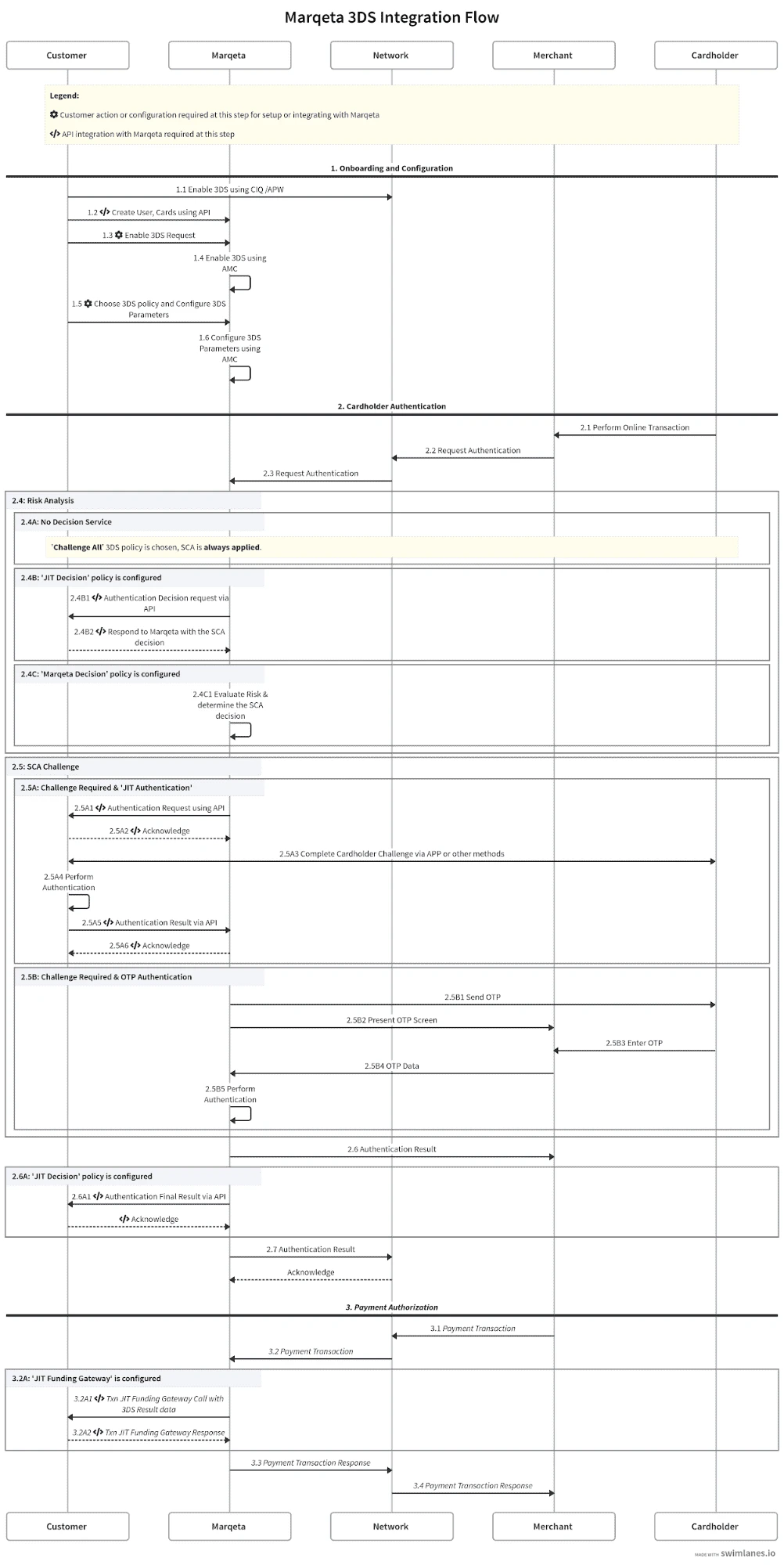

The following figure shows the overall flow for 3D Secure authentication and payment authorization.

Setup details

The following sections describe in detail the overall flow shown in the figure above, with a focus on the steps where a specific action or API integration is required.

Step 1 — Setup and onboarding

Step #	Summary	Details	Customer Configuration Required	Marqeta API Integration Required
1.1	Enable 3D Secure using the card network’s CIQ/APW	Enable 3D Secure with the card network using Visa’s CIQ or Mastercard’s APW and other required documents.	No	No
1.2	Create users, cards using API	Using Marqeta’s API, create users and cards.	No	Yes
1.3	Enable 3D Secure request	Request to enable 3D Secure with Marqeta through your Marqeta representative.	Yes	No
1.4	Enable 3D Secure using the Marqeta Dashboard	Marqeta representative enables 3D Secure using app.marqeta.com.	No	No
1.5	Choose a 3D Secure policy and configure 3D Secure parameters	Choose the appropriate 3D Secure Risk and Authentication options, then contact your Marqeta representative to have the required parameters configured. Configuration Parameters: - 3D Secure Decisioning Policy: Delegated Decisioning or Automated Decisioning. - Delegated Decisioning details – URL, basic authentication credentials, fallback on decision service failure. - If you do not select a decision policy, the Challenge All policy is applied by default. - Advanced Authentication: - Authentication details (URL, basic authentication credentials, etc.) to allow you to challenge the cardholder using your choice of authentication method. - OTP screen details: - Bank logo for the OTP screen. - The no-reply `from` email address for delivering OTP via email. - Customer support phone number. - Company details for 10DLC registration (only applicable in the US.)	Yes	No
1.6	Configure 3D Secure parameters using the Marqeta Dashboard	Marqeta representative enables 3D Secure configurations using app.marqeta.com.	No	No

Step 2 — Cardholder authentication

Step #	Summary	Details	Customer Configuration Required	Marqeta API Integration Required
2.1	Cardholder makes an online transaction	None	No	No
2.2	Merchant requests authentication	None	No	No
2.3	Card network requests authentication	None	No	No
2.4A	If no decisioning policy is configured:	If no decisioning policy is configured:
	Challenge All authentication requests from the 3D Secure requestor and/or merchant	Challenge All authentication requests from the 3D Secure requestor and/or merchant
2.4B	If Delegated Decisioning is configured:	If Delegated Decisioning is configured:
2.4B1	Delegated Decisioning request via API	Marqeta’s systems make a web request to obtain a decision from you on whether to apply Strong Customer Authentication (SCA) to the request in picture or exempt it from SCA. You must implement the necessary systems to handle this request.	No	Yes
2.4B2	Respond to Marqeta with the SCA decision	Your system must respond to the Marqeta system’s request with the SCA decision within the prescribed SLA.	No	Yes
2.4C	If Automated Decisioning is configured:	If Automated Decisioning is configured:
2.4C1	Evaluate the risk and decide to exempt or challenge the cardholder	Evaluate the risk and decide to exempt or challenge the cardholder	No	No
2.5A	If Challenge All and Advanced Authentication are configured:	If Challenge All and Advanced Authentication are configured:
2.5A1	Advanced Authentication request via API	Marqeta requests that you authenticate the cardholder (in-app or otherwise), using the API defined by Marqeta. You must be able to process Marqeta’s authentication request using the Marqeta-defined JSON payload.	No	Yes
2.5A2	Acknowledge	Your endpoint should acknowledge Marqeta’s API request with a `200 OK` response.	No	Yes
2.5A3	Complete cardholder challenge via mobile APP or other preferred method	You request in-app authentication from the cardholder using the mobile banking app or another preferred method such as voice calling.	No	No
2.5A4	Perform authentication	You perform the authentication.	No	No
2.5A5	Respond to Marqeta with the authentication result	Marqeta acknowledges with a `200 OK` response.	No	Yes
2.5B	If Challenge All and Default OTP is configured:	If Challenge All and Default OTP is configured:
2.5B1	Marqeta sends OTP via text or email to the registered phone number or email address	None	No	No
2.5B2	Marqeta presents the OTP screen on the merchant’s website	None	No	No
2.5B3	Cardholder enters OTP	None	No	No
2.5B4	OTP data is received by Marqeta	None	No	No
2.5B5	Marqeta performs cardholder authentication	None	No	No
2.6	Marqeta sends the cardholder authentication result to the merchant	None	No	No
2.6A	If Delegated Decisioning is configured:	If Delegated Decisioning is configured:
2.6A1	Authentication final result via API	Marqeta’s systems will make a web request to update the authentication results. Your endpoint should acknowledge Marqeta’s API request with a `200 OK` response.	No	Yes
2.7	Marqeta sends the cardholder authentication result to the card network	None	No	No

Step 3 — Payment authorization

Step #	Summary	Details	Customer Configuration Required	Marqeta API Integration Required
3.1	Merchant initiates the payment transaction	None	No	No
3.2	Card network routes the payment transaction to Marqeta	None	No	No
3.2A	If Gateway JIT Funding is configured:	If Gateway JIT Funding is configured:
3.2A1	Marqeta initiates a Gateway JIT Funding request with 3D Secure result data	Marqeta makes a JIT call to your JIT gateway endpoint. This call includes transaction-related information: how the transaction was authenticated and whether or not the authentication was successful. At this time, you can decide to approve or decline the payment transaction.	No	Yes
3.2A2	JIT gateway response	You respond back to the JIT gateway call with your decision (approve or deny).	No	Yes
3.3	Marqeta sends the payment transaction response to the card network	None	No	No
3.4	The card network sends the payment transaction response to the merchant	None	No	No

Enabling 3D Secure

Contact your Marqeta representative to enable 3D Secure for your program.

APIs and contracts

You must provide a URL for the following endpoints, which Marqeta calls during the 3D Secure flow:

Delegated Decisioning – Determine whether to request SCA from the cardholder.
Notify Marqeta of a 3D Secure completion status.
Advanced Authentication - Initiate a challenge request related to SCA.
Update an authentication result to Marqeta.

For detailed information on these endpoints, see 3D Secure in the Core API Reference.

When to use each interface

Depending on the 3D Secure options you choose, you will need to implement and configure for one or more of the API endpoints described above. The following table lists the policies along with the required actions:

Option	Policy	Action
1	Challenge All and Default OTP	No API integration necessary
2	Delegated Decisioning and Default OTP	Delegated Decisioning request Notify a 3D Secure completion status
3	Delegated Decisioning and Advanced Authentication	Delegated Decisioning request Notify a 3D Secure completion status Advanced Authentication request Advanced Authentication result
4	Automated Decisioning and Default OTP challenge	No API integration necessary
5	Automated Decisioning and Advanced Authentication	Advanced Authentication request Advanced Authentication result
6	Challenge All and Advanced Authentication	Advanced Authentication request Advanced Authentication result
