3DS Automated Decision Service Reporting

3D Secure Automated Decision Service Reporting allows you to programmatically generate and fetch daily, monthly, and quarterly 3DS Automated Decisioning Service reports over HTTPS.

Overview

Each report contains the total number and the total value (in the transaction currency) of the requests processed by Marqeta’s 3DS Automated Decisioning Service. In addition, averages and percentages are calculated and presented for your convenience. Each report is further broken down by whether the decision was made to challenge or to exempt the ACS request. If an exemption was granted, the report is broken down further into the exemption types (articles). When using Marqeta’s 3DS Automated Decisioning Service with Marqeta’s ACS, this API also enables you to get statistics on the SCA challenge or exemption decisions made under 3DS 2.2.

Note
All ACS decisions precede transaction requests, but not all decisions are guaranteed to be followed by a payment transaction.

Retrieving simple reports

You can retrieve simple reports using an API client or command-line tool. This section provides examples of how to quickly retrieve reports using either Postman or cURL.

Prerequisites

An API client—either software with a user interface such as Postman or a command-line tool such as cURL—that can send HTTP request DiVA API access tokens. To get your tokens:

Follow the steps described in the The basics section of the Reports page to create an account if you don’t already have one.

Go to the creating your API access tokens section.

These are the API access tokens you need to use the 3DS Automated Decisioning Service Reporting API.

Using Postman (recommended)

Postman is a free tool you can use to make requests to RESTful web services and view the results of various output formats. Marqeta is not affiliated with nor does it endorse Postman, Inc. or any of its products or services. The following instructions were created using Postman version 10.15.1.

Enter the URL in the URL box and select the GET HTTP method.

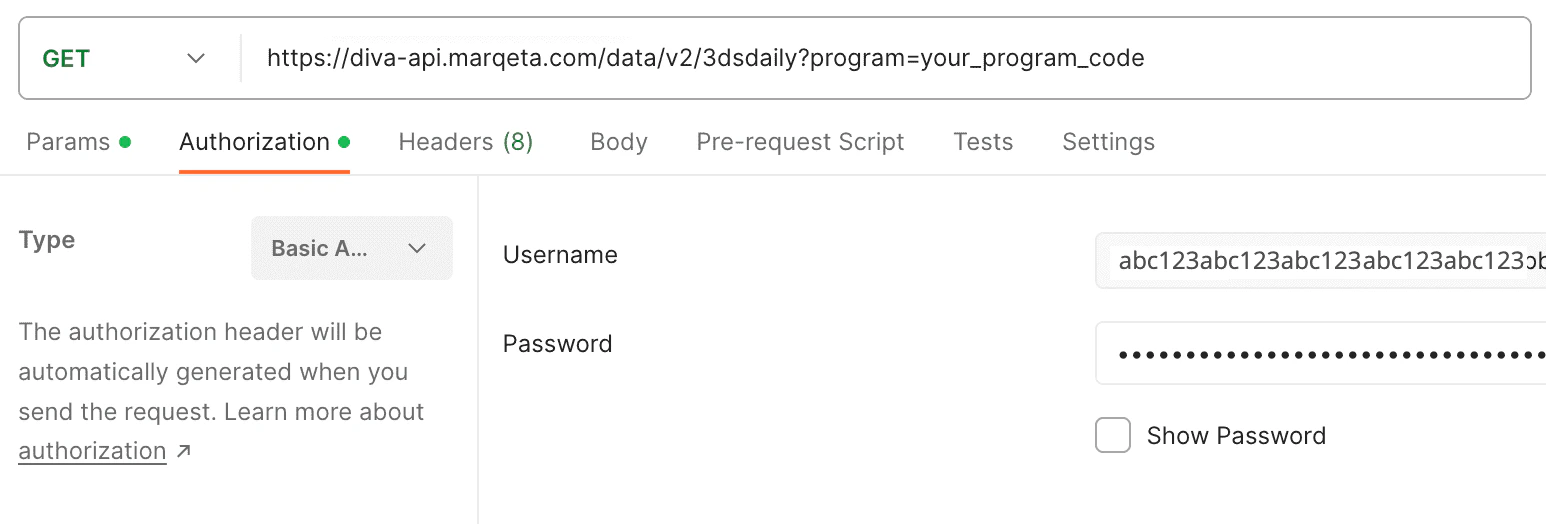

In the Authorization tab, select Basic Auth. Use the API access tokens that you obtained in step 2 of Prerequisites above. The username is your App Token and the password is your Access Token.

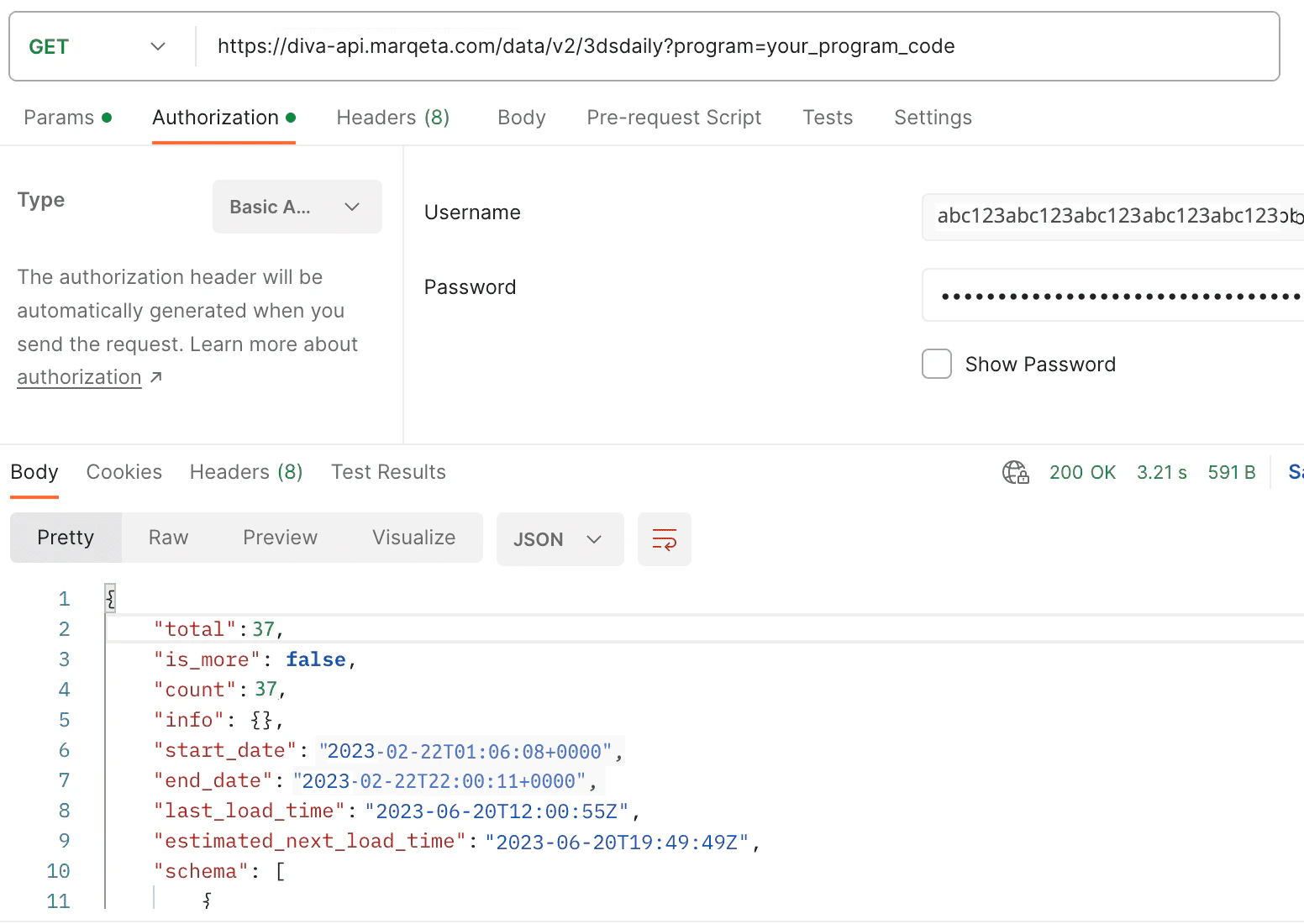

Select Send. You should see a response similar to the following. The response body is a list of JSON objects. Each object is a data row. Inside the object, each key is a column name and the value is the actual data.

(Optional) Save the response to a file by selecting Save Response in the upper-right corner of the response window.

Using cURL

Using cURL, you can request reports from a command line (cli). For example, you can retrieve the daily reports for your customers starting from January 1, 2023 until January 31, 2023. Any reports that have not yet been generated do not appear in the results. Replace Authorization: Basic *** with your API Access ID and API Access Secret as the user-id and user-pass, respectively, as described in RFC 7617 The ‘Basic’ HTTP Authentication Scheme.

cURL

curl --location --request GET "https://diva-api.marqeta.com/data/v2/3dsdaily?program=your_program_code" \
--header "Authorization: Basic ***" \
--header "Content-Type: application/json" \

Exploring the 3DS Automated Decisioning Service DiVA Reporting API

This section provides information on how to use the 3DS Automated Decisioning Service DiVA Reporting API, which is part of the DiVA API. For details on using the DiVA API, including how to get your authentication tokens, see Introduction to DiVA API. The following are the 3DS Automated Decisioning Service Reporting API URLs:

Daily report: https://diva-api.marqeta.com/data/v2/3dsdaily
Monthly report: https://diva-api.marqeta.com/data/v2/3dsmonthly
Quarterly report: https://diva-api.marqeta.com/data/v2/3dsquarterly

Using the API

Use a GET request to retrieve your 3DS Automated Decisioning Service reports using the DiVA API. Use lowercase to define your query and include at least one program parameter in the request. The DiVA API allows you to filter your requests using parameters. Use the DiVA authentication tokens in each request, with the application token as the username and the access token as the password in every HTTP request header. The DiVA API response includes metadata as shown in the following example:

JSON

{
    "total": 37,
    "is_more": false,
    "count": 37,
    "info": {},
    "start_date": null,
    "end_date": null,
    "last_load_time": null,
    "estimated_next_load_time": null,
    "schema": [
        {
          "field": "SHARD_ID",
          "type": "integer",
          "display": "shard_id",
          "description": null,
          "units": null,
          "has_total": false,
          "is_filter_only": false
        },
        {
          "field": "PROGRAM_SHORT_CODE",
          "type": "character varying(8)",
          "display": "PROGRAM_SHORT_CODE",
          "description": null,
          "units": null,
          "has_total": false,
          "is_filter_only": false
        },
        {
          "field": "THREE_DS_DECISION_COUNT",
          "type": "integer",
          "display": "THREE_DS_DECISION_COUNT",
          "description": null,
          "units": null,
          "has_total": false,
          "is_filter_only": false
        }
    ],
    "records": [
        {
          "SHARD_ID": "shard_id",
          "PROGRAM_SHORT_CODE": "your_program_code",
          "THREE_DS_DECISION_COUNT": 27
        },
        {
          "SHARD_ID": "shard_id",
          "PROGRAM_SHORT_CODE": "your_program_code",
          "THREE_DS_DECISION_COUNT": 16
        },

         ...

        {
          "SHARD_ID": "shard_id",
          "PROGRAM_SHORT_CODE": "your_program_code",
          "THREE_DS_DECISION_COUNT": 31
        },
    ]
}

Reporting schema

The following are the 3DS Automated Decisioning Service DiVA Reporting API schema URLs:

Daily report: https://diva-api.marqeta.com/data/v2/3dsdaily/schema
Monthly report: https://diva-api.marqeta.com/data/v2/3dsmonthly/schema
Quarterly report: https://diva-api.marqeta.com/data/v2/3dsquarterly/schema

The following table describes the schema fields. All dates and times are stored in UTC. A day begins at 00:00:00.0000 UTC and ends at 23:59:59.9999 UTC.

Column name	Reports	Description
shard_id	All	Short code of the program on the Marqeta platform.
program_short_code	All	Short code of the program on the Marqeta platform.
date_utc	Daily only	The date the aggregated results encompass.
year	Monthly and Quarterly only	The year the aggregated results encompass.
quarter	Quarterly only	The quarter the aggregated results encompass.
month	Monthly only	The month the aggregated results encompass.
three_ds_decision_count	All	The total number of all requests processed.
three_ds_decision_sum	All	The total value of all requests processed.
three_ds_decision_mean	All	The average value of all requests processed.
challenged_decision_count	All	The number of requests challenged.
challenged_decision_sum	All	The total value of the requests challenged.
challenged_decision_mean	All	The average value of requests challenged.
challenged_decision_count_percentage	All	The percentage of the decisions that were challenged over all decisions made.
challenged_decision_sum_percentage	All	The percentage of the value of decisions that were challenged over all decisions made.
exempted_decision_count	All	The number of requests exempted for any reason.
exempted_decision_sum	All	The total value of the requests exempted for any reason.
exempted_decision_mean	All	The average value of the requests exempted for any reason.
exempted_decision_count_percentage	All	The percentage of decisions that were exempted over all decisions made.
exempted_decision_sum_percentage	All	The percentage of the value of decisions that were exempted over all decisions made.
exempted_decision_by_article_13_count	All	The number of requests exempted by Article 13.
exempted_decision_by_article_13_sum	All	The total value of the requests exempted by Article 13.
exempted_decision_by_article_13_mean	All	The average value of the requests exempted by Article 13.
exempted_decision_by_article_13_count_percentage	All	The percentage of requests exempted by Article 13 over all exempted decisions.
exempted_decision_by_article_13_sum_percentage	All	The percentage of the total value of requests exempted by Article 13 over all exempted decisions.
exempted_decision_by_article_14_count	All	The number of requests exempted by Article 14.
exempted_decision_by_article_14_sum	All	The total value of the requests exempted by Article 14.
exempted_decision_by_article_14_mean	All	The average value of the requests exempted by Article 14.
exempted_decision_by_article_14_count_percentage	All	The percentage of requests exempted by Article 14 over all exempted decisions.
exempted_decision_by_article_14_sum_percentage	All	The percentage of the total value of requests exempted by Article 14 over all exempted decisions.
exempted_decision_by_article_16_count	All	The number of requests exempted by Article 16.
exempted_decision_by_article_16_sum	All	The total value of requests exempted by Article 16.
exempted_decision_by_article_16_mean	All	The average value of requests exempted by Article 16.
exempted_decision_by_article_16_count_percentage	All	The percentage of requests exempted by Article 16 over all exempted decisions.
exempted_decision_by_article_16_sum_percentage	All	The percentage of the total value of requests exempted by Article 16 over all exempted decisions.
exempted_decision_by_article_18_count	All	The number of requests exempted by Article 18.
exempted_decision_by_article_18_sum	All	The total value of requests exempted by Article 18.
exempted_decision_by_article_18_mean	All	The average value of requests exempted by Article 18.
exempted_decision_by_article_18_count_percentage	All	The percentage of requests exempted by Article 18 over all exempted decisions.
exempted_decision_by_article_18_sum_percentage	All	The percentage of the total value of requests exempted by Article 16 over all exempted decisions.
created_timestamp_utc	All	The date and time, in UTC, the request was created.
min_date_time_utc	All	The minimum date and time, in UTC.
max_date_time_utc	All	The maximum date and time, in UTC.
exempted_decision_by_requestor_data_share_only_count	All	The number of requests exempted by the requestor (merchant requested no challenge).
exempted_decision_by_requestor_data_share_only_sum	All	The total value of requests exempted by the requestor (merchant requested no challenge).
exempted_decision_by_requestor_data_share_only_mean	All	The average value of requests exempted by the requestor (merchant requested no challenge).
exempted_decision_by_requestor_data_share_only_count_percentage	All	The percentage of requests exempted by the requestor (merchant requested no challenge) over all exempted decisions.
exempted_decision_by_requestor_data_share_only_sum_percentage	All	The percentage of the total value of requests exempted by the requestor (merchant requested no challenge) over all exempted decisions.
exempted_decision_by_requestor_sca_already_performed_count	All	The number of requests exempted by the requestor SCA already performed.
exempted_decision_by_requestor_sca_already_performed_sum	All	The total value of requests exempted by the requestor SCA already performed.
exempted_decision_by_requestor_sca_already_performed_mean	All	The average value of requests exempted by the requestor SCA already performed.
exempted_decision_by_requestor_sca_already_performed_count_percentage	All	The percentage of requests exempted by the requestor SCA already performed over all exempted decisions.
exempted_decision_by_requestor_sca_already_performed_sum_percentage	All	The percentage of the total value of requests exempted by the requestor SCA already performed over all exempted decisions.
